COMBINED GROUND FREEZING APPLICATION FOR THE EXCAVATION OF CONNECTION TUNNELS FOR CENTRUM NAUKI KOPERNIK STATION

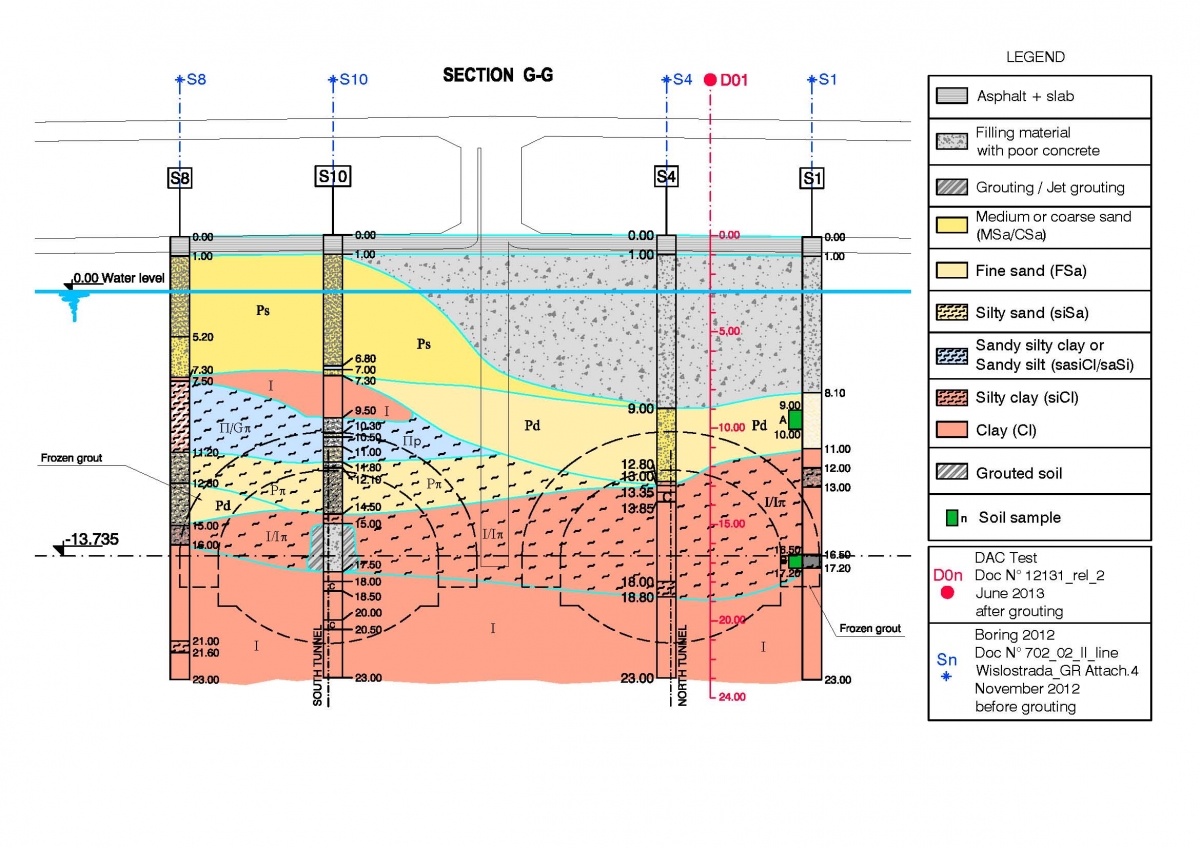

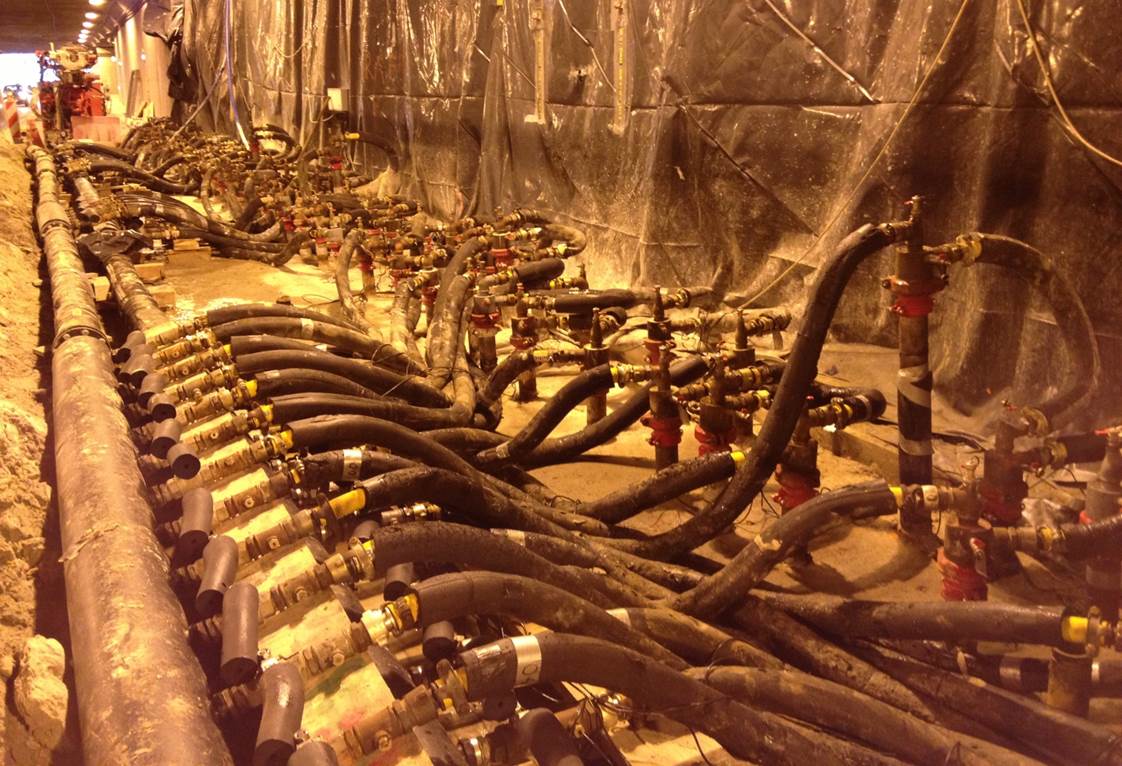

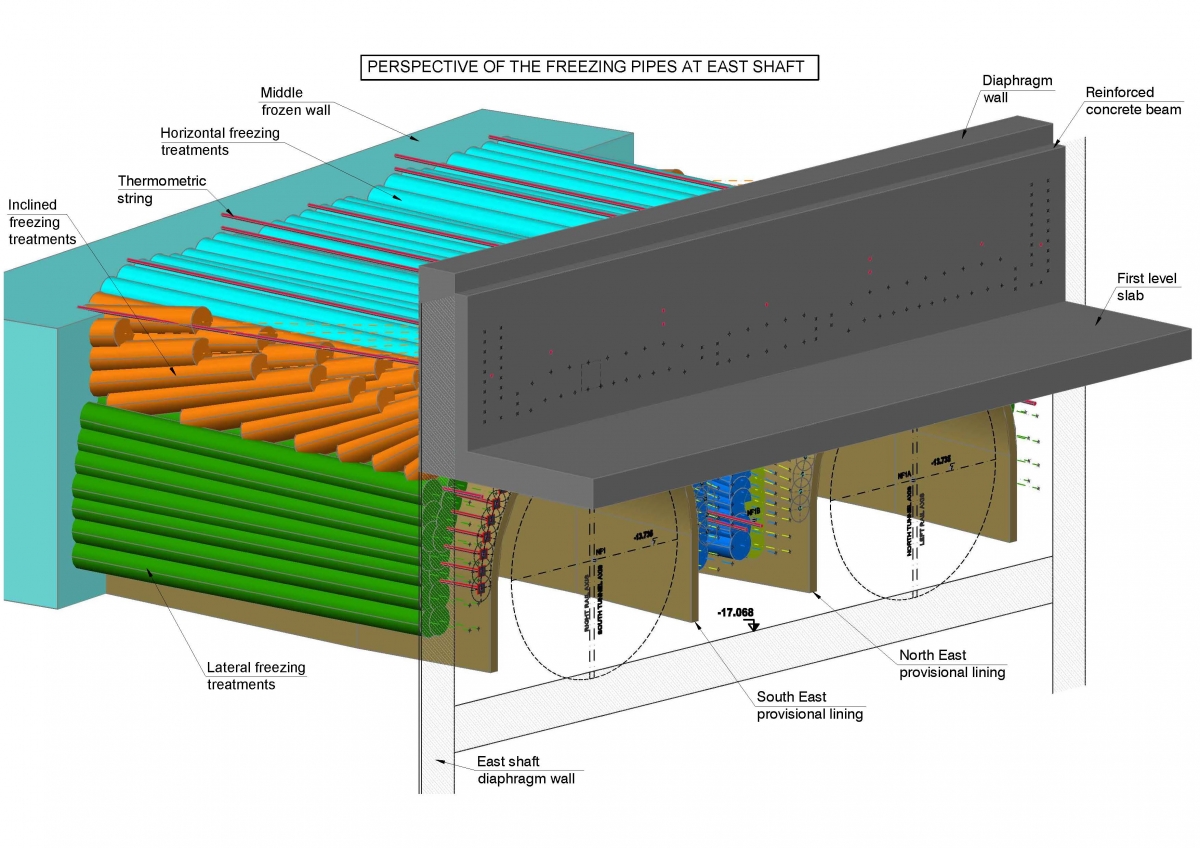

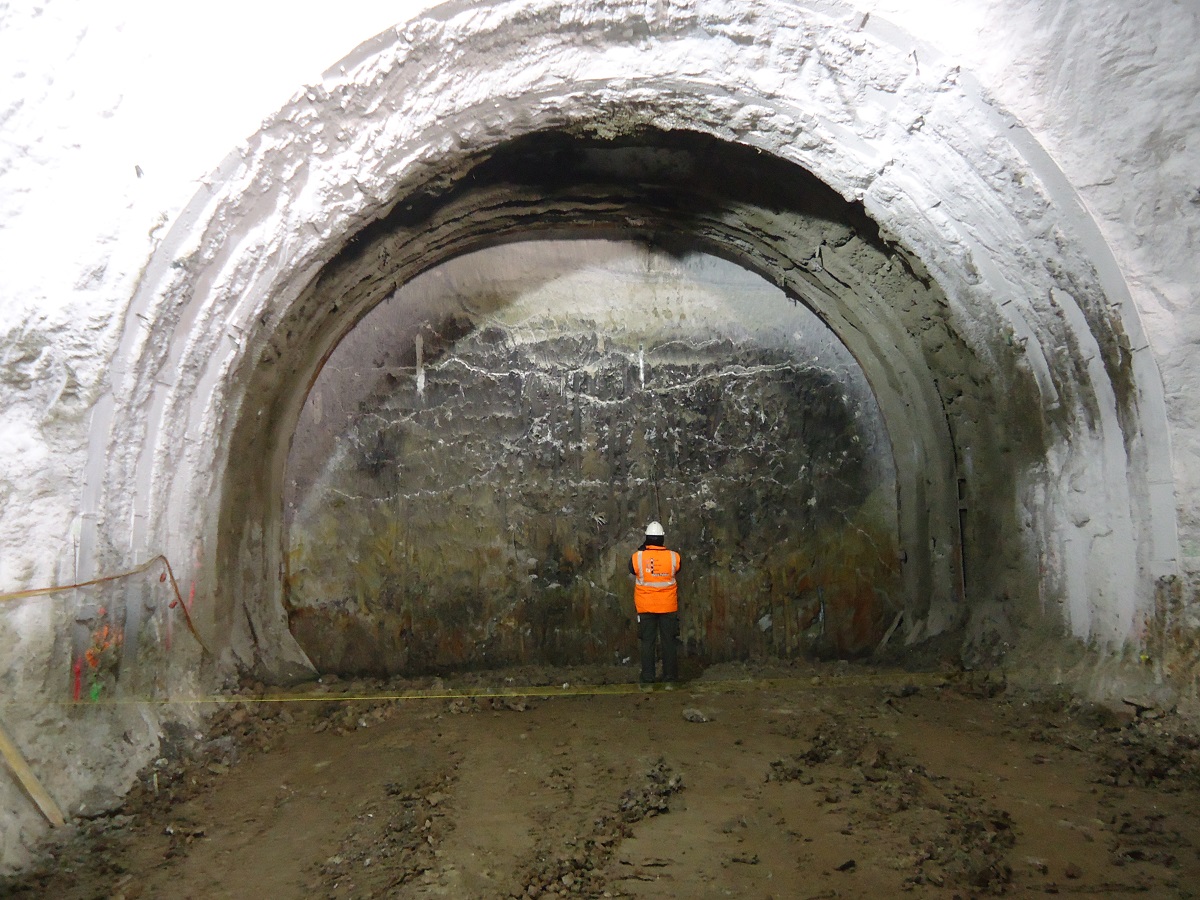

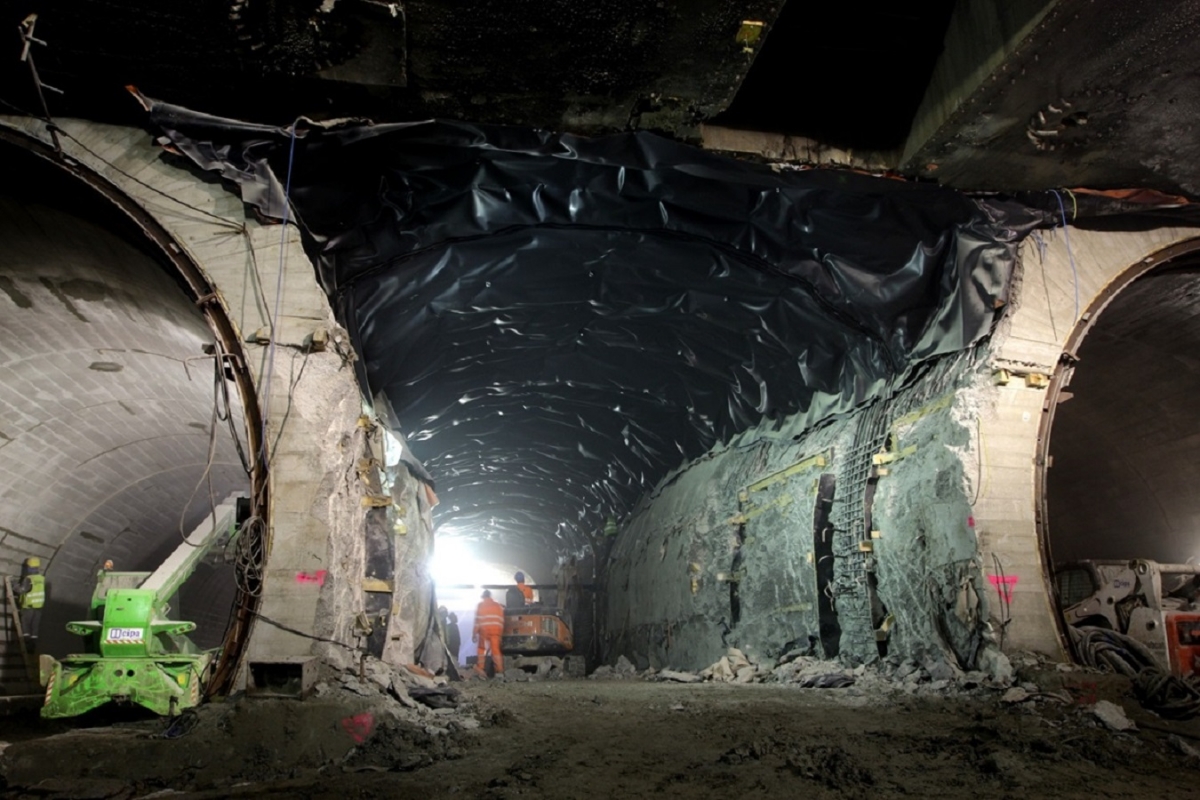

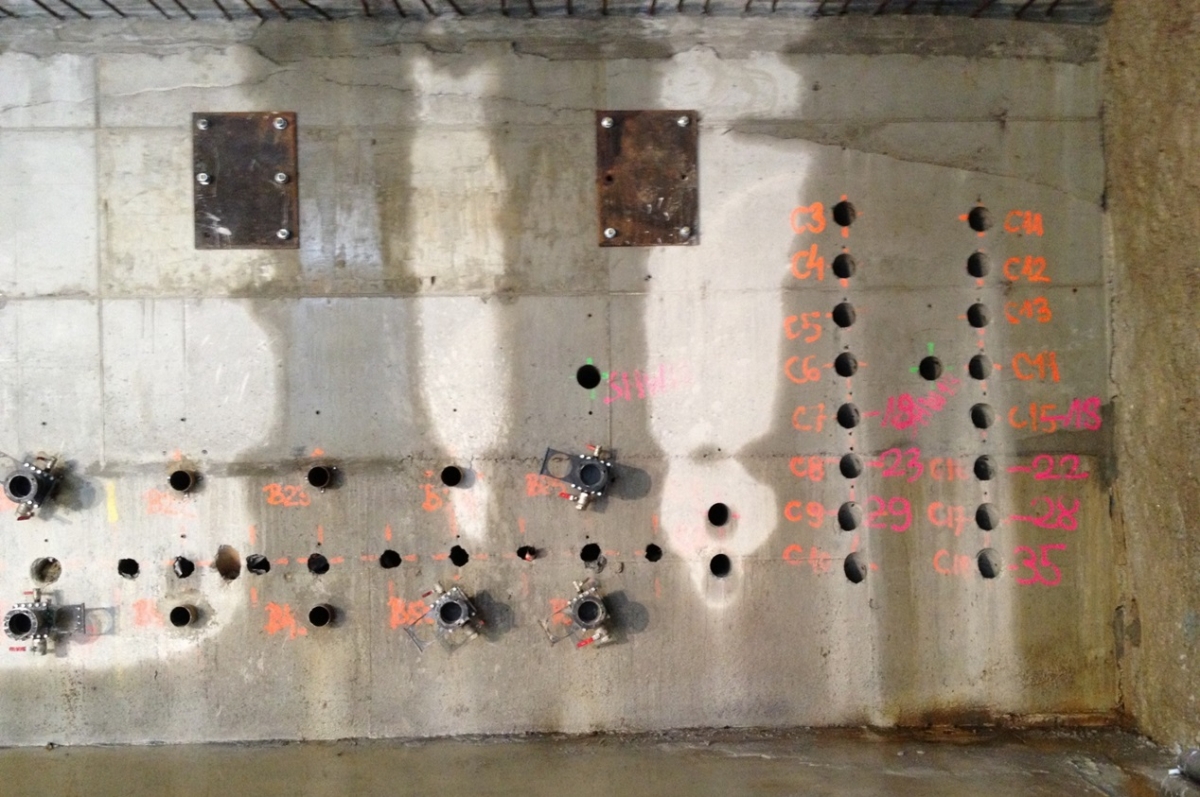

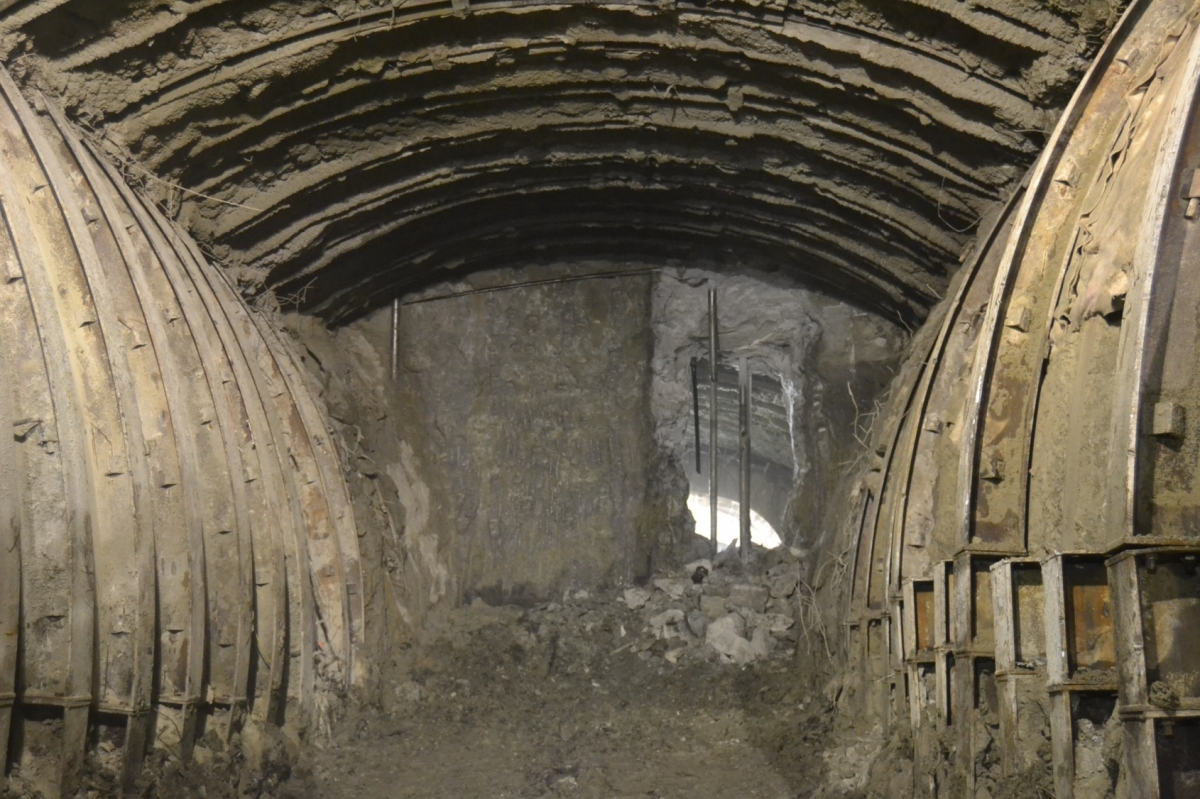

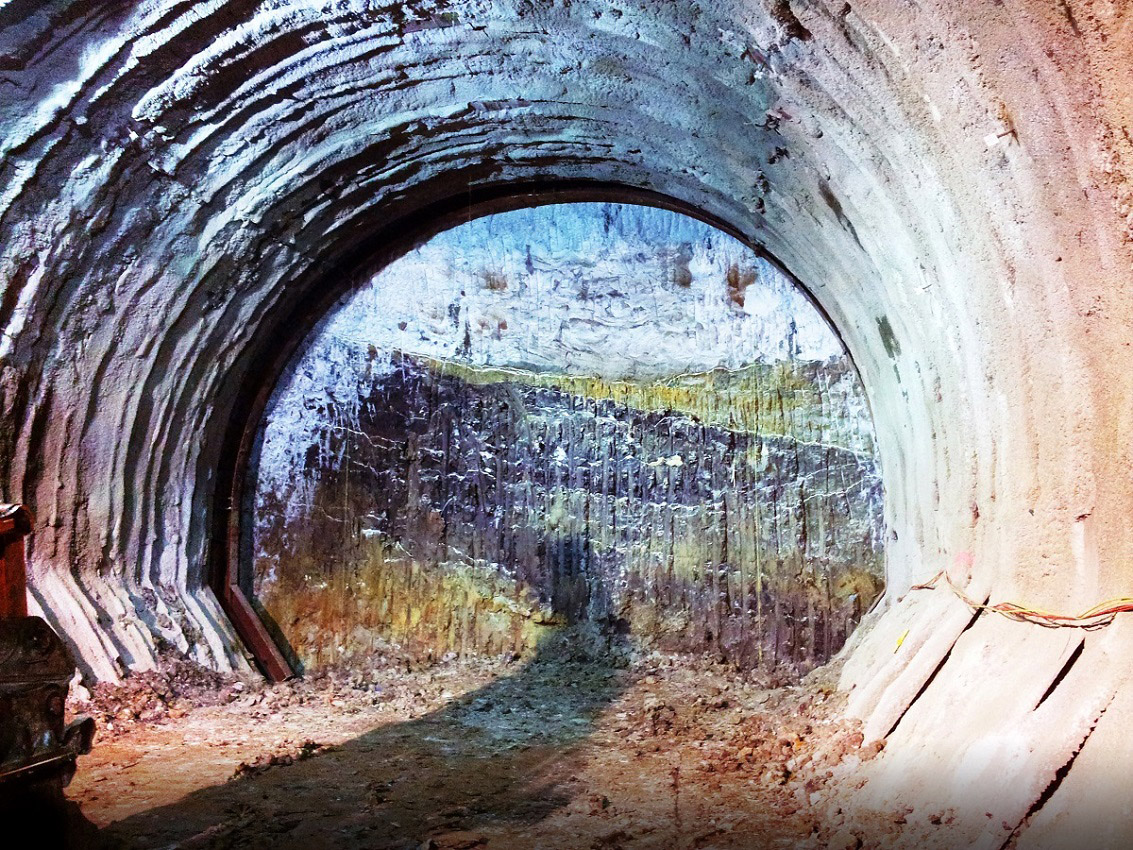

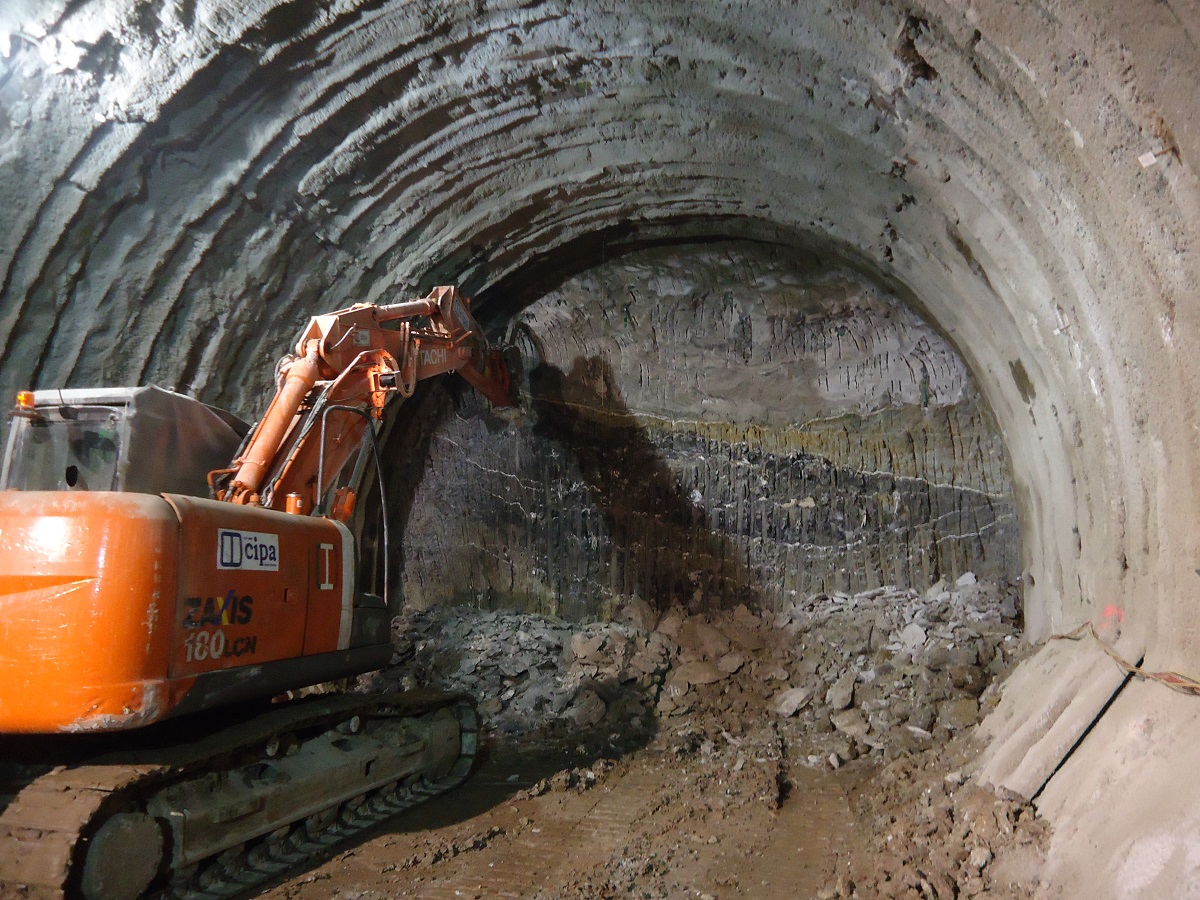

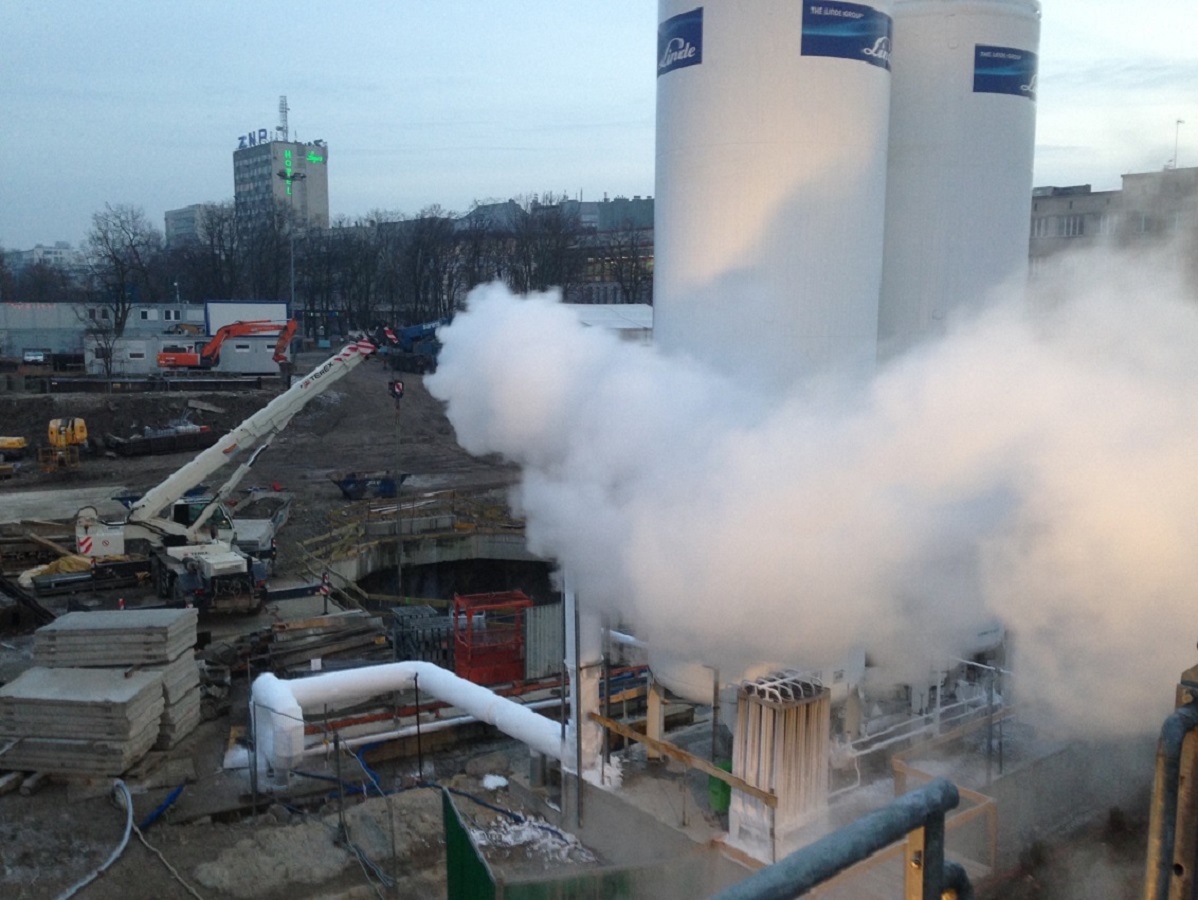

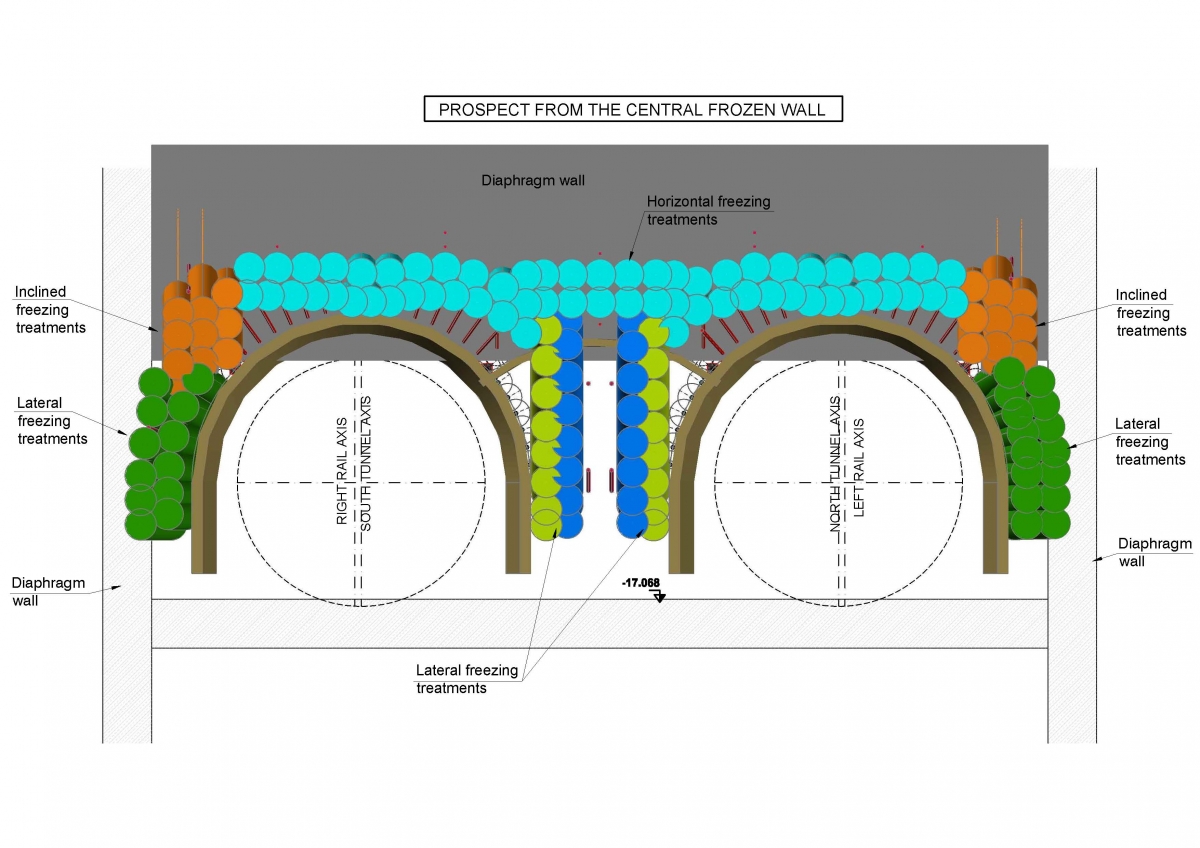

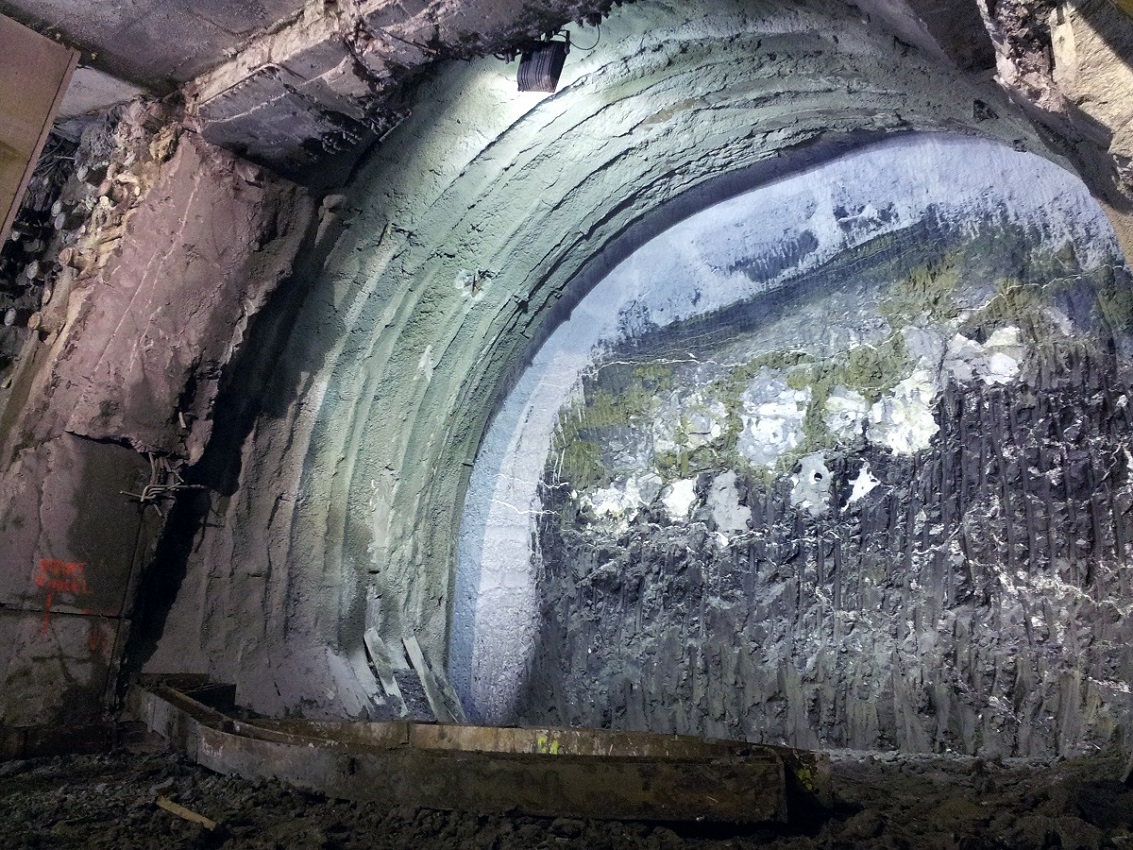

The Station “C13” of Warsaw Underground Line II, with tunnel crown 10m below the water table, required the excavation of three connection tunnels, underpassing a six-lane in service road tunnel, working from two lateral shafts. After the collapse and flooding occurred while digging the first tunnel, the use of artificial ground freezing was chosen to ensure the excavation under safe conditions. A complex freezing pipe geometry and excavation sequencing was necessary because of the interferences of the overlying road tunnel diaphragm wall foundations, shaft internal structures and previous grouting activities. A combined freezing method was used: nitrogen for freezing the tunnel arches, brine for freezing the intermediate wall and for maintenance stages. Sandy and silty sandy layers were frozen around the crowns and sides. No treatment was necessary for the inverts, lying in clay. A monitoring system of ground temperatures and structure movements allowed for successful completion of work in 8 months.
Site: Varsavia (POL)
Services: Design, Works supervision
Project value: € 7M
